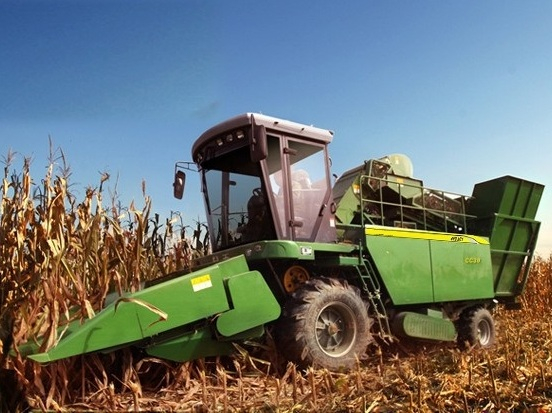

4YZ-3K Corn Combine Harvester

1. Super performance, high efficiency;
2. Full-featured, effort-saving;
3. Easy maintenance, comfortable driving and ride;
4. High price/performance ratio, good fuel economy;
5. Less damage to corn stem.
Quantity:
  • 4YZ-3K

  • FOTMA

  • 4YZ-3K

  • Corn harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

1. Super performance, high efficiency
2. Using a rubber roller + cast-iron roller for the slot array corn husk remover provides a good corn husk removing effect and high efficiency.
3. New vibration-type leaf remover with a rational structure to allow the leaves to be positioned right ahead of the cutter, provides an easy cutting and straw returning to field to improve land fertility, and 3-blade flail-type chopper allows the swashing width to be consistent with the cutting width, providing a good smashing effect. The flail edge is welded with wear-resistant alloy materials in order to extend the service life of the smashing device.
4. Equipped with a roller for aligning the 4-blade cutter and a combined-plate type stripper with high efficiency and reliability, resulting in less damage to corn stem.
5. Exclusive grass discharge port with a good discharging effect and high efficiency.
6. Brand new grain recovery unit, providing a convenient unloading and improving the operating speed.
7. The vibration bract discharger is convenient for chopping and returning to field.Full-featured, effort-saving
8. The elevator outlet is equipped with a 12-blade blower, a secondary pulling-stem and a swashing type cutter, providing good removal of impurities.
9. The engine uses new protection technologies to effectively prevent fire.
10. Using bi-directional power output mode that allows the transmission system of the operating device and that of the traveling system to be manipulated separately. This structure is both advanced and reliable.
11. Based on the characteristics of corn planting agriculture, the 3-row header and the 4-row header can be exchanged, resulting in high overall adaptability.High price/performance ratio, good fuel economy
12. On a comparable basis, the price is about only half than the price of an equivalent model, offering a low investment risk, low unit price and quick recovery of costs.
13. 140hp 4-cylinder DI turbocharged engine made by Quanchai, Yuchai, or Dongfanghong, with strong power, low oil consumption and good fuel economy.
14. Easy operation, comfortable driving and ride
15. Equipped with the new patented luxurious cabin with rotational moulded roof to provide comfortable driving and ride, easy control and wide field of view.
16. Multi-functional steering wheel with combined instruments with sound alarm to provide an easy driving and manipulation.

Model 4YZ-3K
Type Self-propelled, no peel-off
Harvesting rows 3
Row space(mm) 650
Dimension (L×W×H)(mm) 8400×2580×3550
Weight(including header)(kg) 6530
Engine power(kW) Yuchai 103kW
Min.ground clearance(mm) 315
Front/rear wheel track(mm) 1680/1625
Smashing width(mm) 1850
Grain tank capacity(m3) 2.5
Pure work productivity(ha/h) 0.33~0.53
Max.unloading height(mm) 1820
Working standard             Total loss rate(%)                                                               ≤4.0
Grain broken rate(%) ≤1.0
Corn impurity rate(%) ≤1.5
Bract peeling rate(%) ≤85
Walking speed(km/h) First shift: 1.55~3.45; Second shift: 3.43~7.61
Third shift: 9.25~20.51; Reverse shift: 3.62~8.03
Picking Mechanism Picking plate + cutting roller
Loading(one unit) a 40'HQ container
